Description

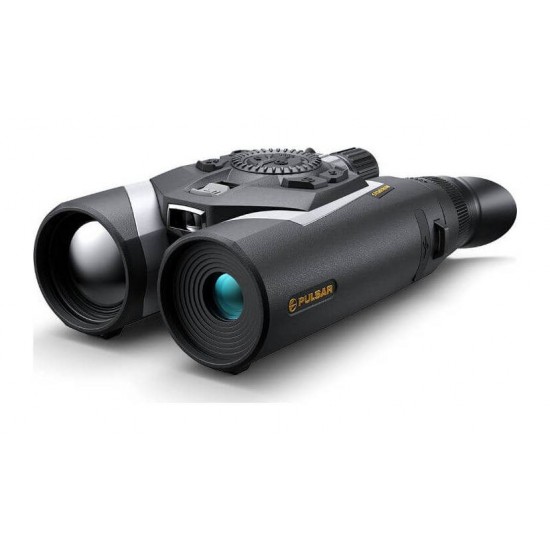

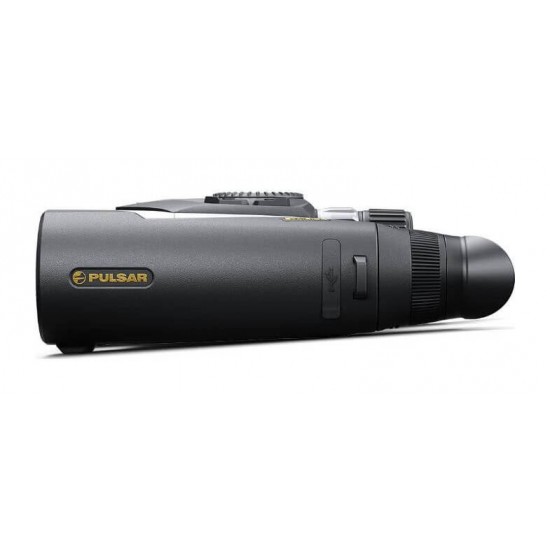

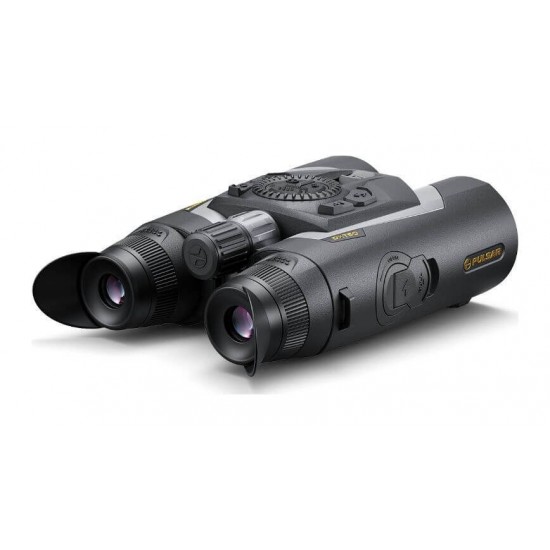

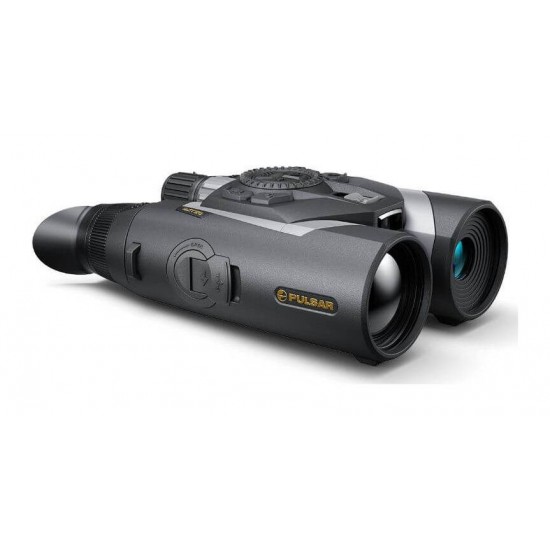

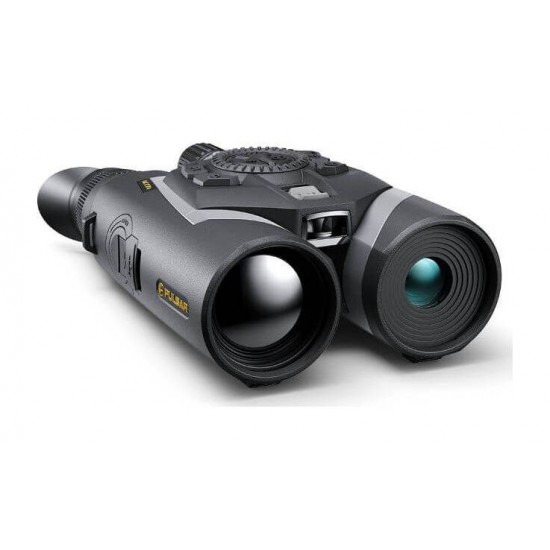

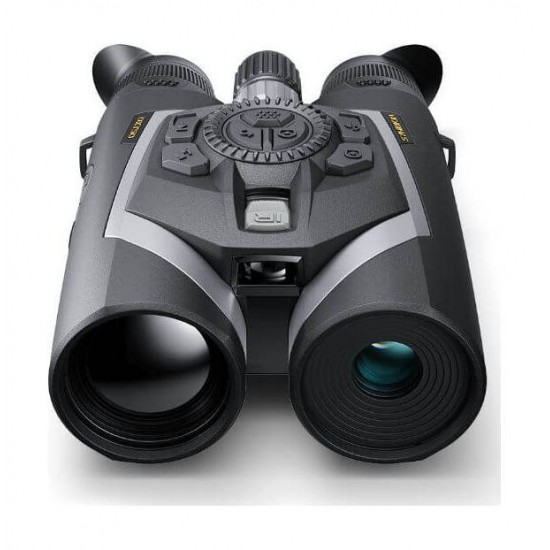

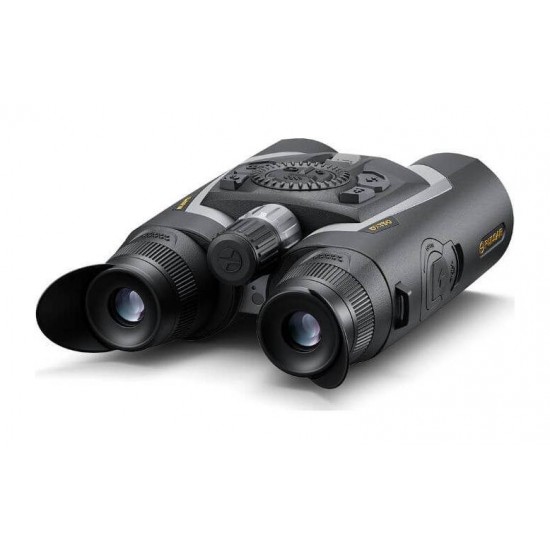

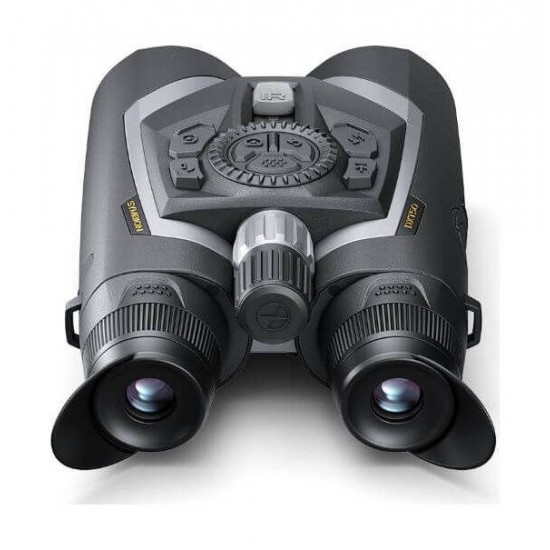

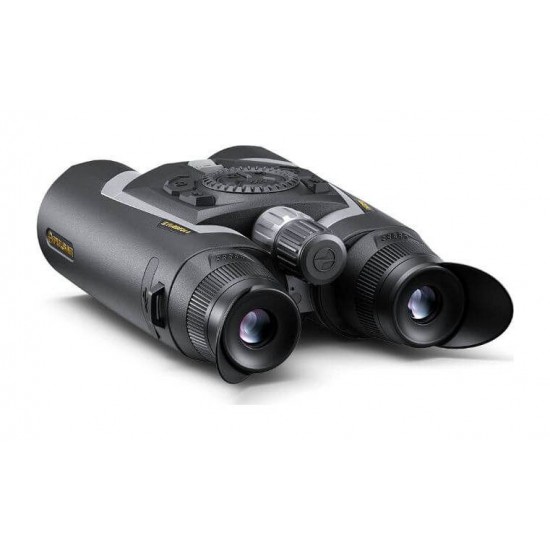

Thermal Imaging & Night Vision Multispectral Binoculars - Pulsar Symbion LRF DXT50
Pulsar Symbion LRF DXT50 – Professional magnesium multispectral 3-in-1 binoculars with a 1280x1024 thermal sensor, 4K digital sensor, 1500m laser rangefinder, and ballistic calculator

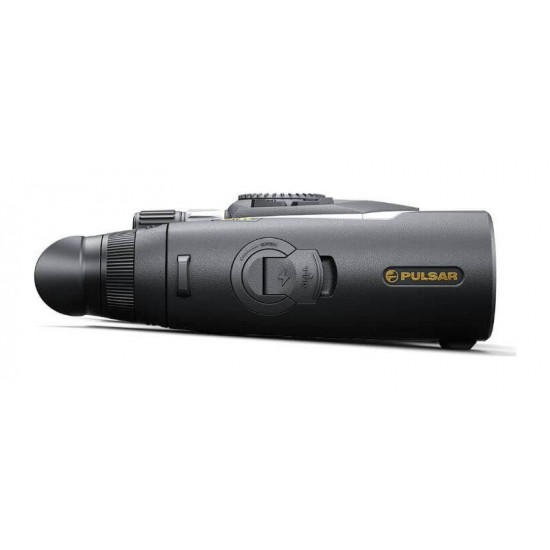

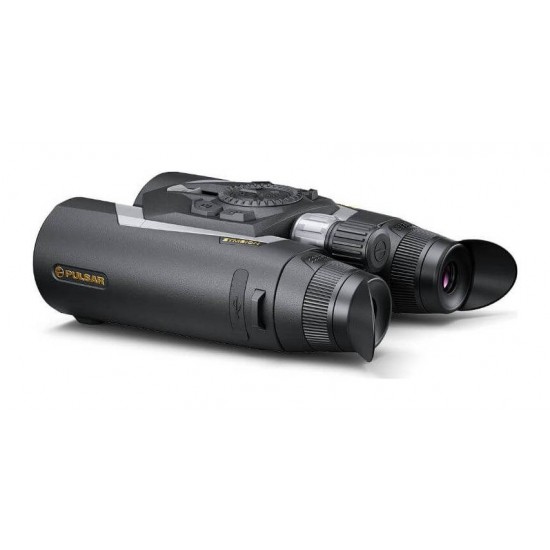

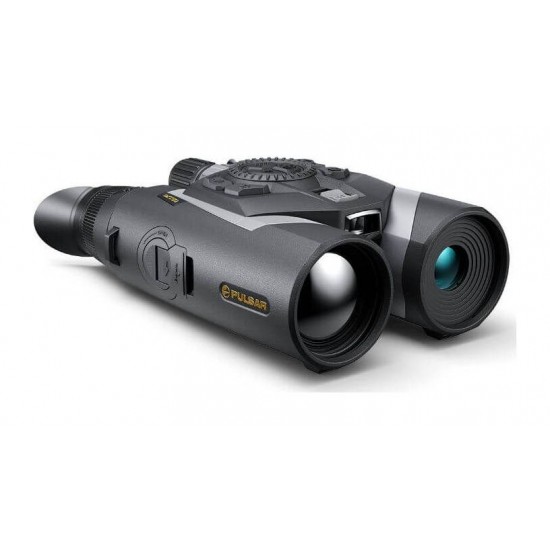

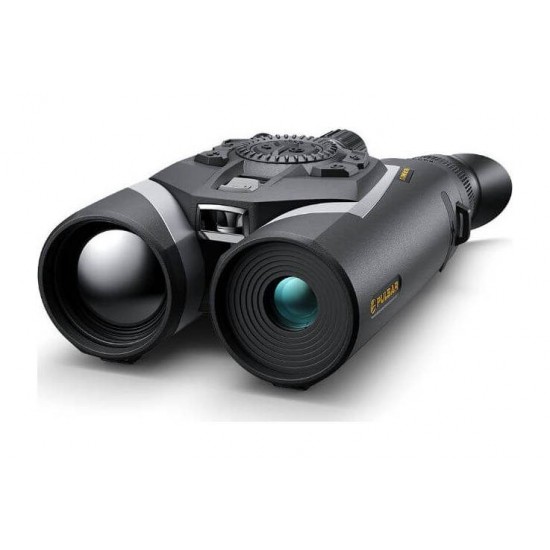

The Pulsar Symbion LRF DXT50 (#77456) Thermal Imaging & Night Vision Binoculars represent the pinnacle of multispectral observation systems worldwide, redefining operational capability and field safety 24 hours a day. Designed in a classic, ergonomic binocular form factor, it uniquely combines three imaging channels: a top-tier HD thermal sensor (1280x1024) for instant heat detection, a 4K CMOS digital sensor (3840x2160) for full-color daytime and twilight observation, and an integrated infrared illuminator (IR Illuminator 850nm) for crystal-clear night vision in complete darkness. It is the ultimate tool for scanning forests, mixed terrain, search and rescue operations, and professional outdoor use.

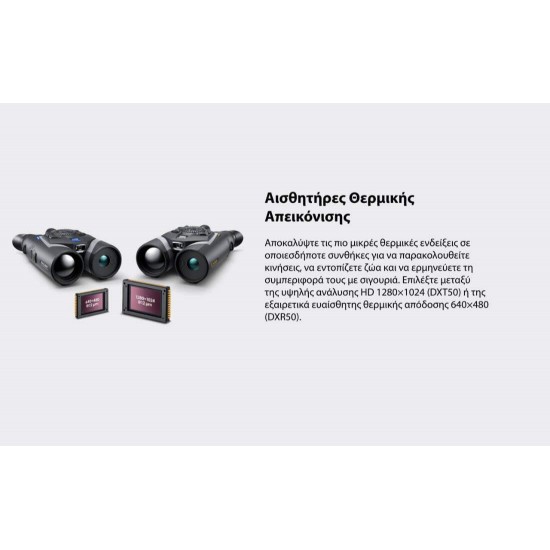

At the heart of the Pulsar Symbion DXT50 is a thermal sensor with industry-leading 1280x1024 pixel resolution at 12µm and NETD thermal sensitivity < 35mK (with System NETD < 20mK). This enables detection of thermal signatures at an incredible distance of up to 2300 meters, rendering even the smallest target detail through fog, smoke, or dense vegetation. At the same time, the 4K digital channel provides magnification up to 26x, while the electronic image stabilization system (Image Stabilization) eliminates hand shake, ensuring crystal-clear and stable viewing even at maximum digital zoom.

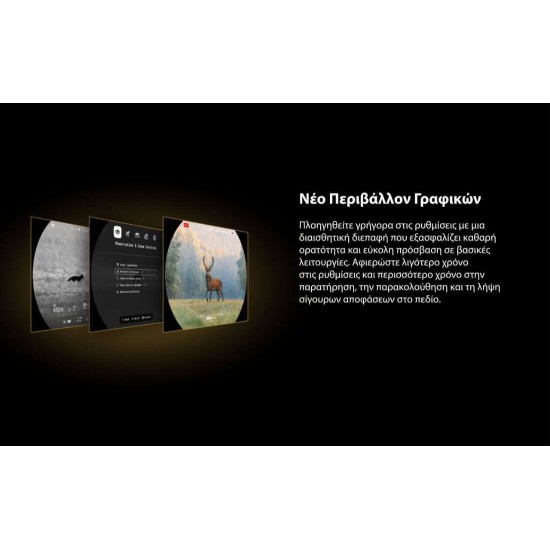

The usability of the device is exceptional. Through the Multispectral PiP (Picture-in-Picture) function, the user can simultaneously display both the thermal and digital channels on the same 1920x1080 MicroLED (AMOLED) display, achieving complete situational awareness. The device integrates a Laser Rangefinder (LRF) with a range of up to 1500 meters and ±1m accuracy, which feeds data to the integrated ballistic calculator (via the Stream Vision 2 & Stream Vision Ballistics applications) for precise trajectory calculation. All of this is housed in a rugged, waterproof magnesium alloy body with IP67 certification, optimized for full one-hand operation thanks to the dual focusing wheels.

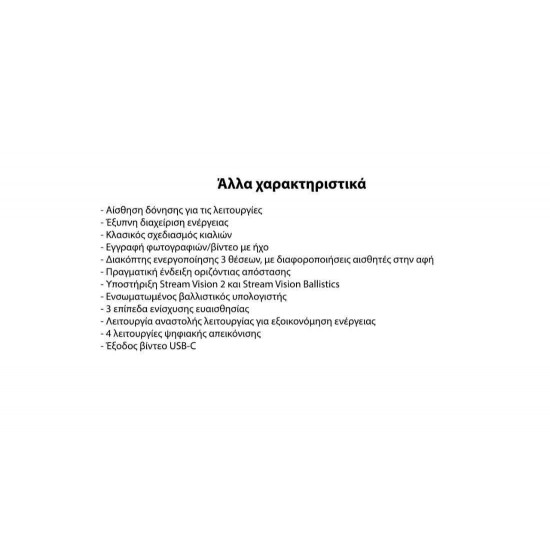

Main Features & Advantages
- 3-in-1 Multispectral Technology: Instantly switch between or simultaneously display full-color daytime viewing, digital night vision, and premium thermal imaging.
- HD 1280x1024 Thermal Sensor: The highest possible resolution on the market for maximum detail and target detection at 2300 meters.
- Electronic Image Stabilization: Eliminates motion blur and shaking, allowing extended comfortable observation at high zoom levels.
- Laser Rangefinder & Ballistic Calculator: Fast distance measurement up to 1500m with automatic True Horizontal Distance indication.

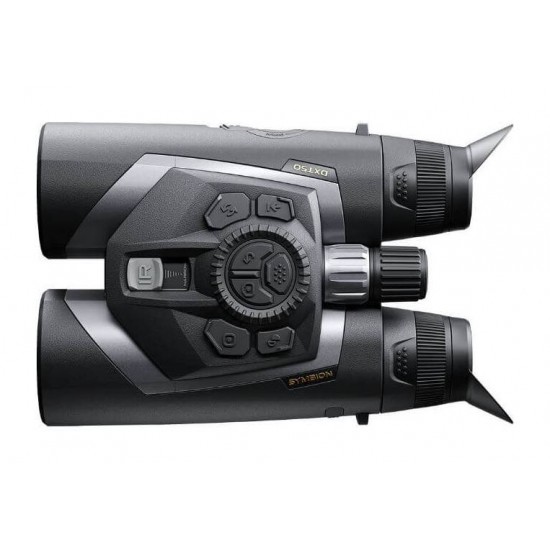

- Ergonomics & Durability: Magnesium alloy body, fully waterproof (IP67), with haptic vibro feedback and one-hand operation design.
Technical Specifications
| Brand / Model | Pulsar Symbion LRF DXT50 |
| Product Code (SKU) | 77456 |
| Thermal Sensor | Uncooled, microbolometric 1280x1024 @ 12µm / NETD < 35mK / 50Hz |
| Digital Sensor | 4K CMOS 3840x2160 |
| Objective Lenses | Thermal: F50/1.0 | Digital: F50/1.8 |
| Magnification (Optical/Digital) | Thermal: 2 – 16x | Digital: 6.5 – 26x |
| Detection Range | Thermal: 2300 m |

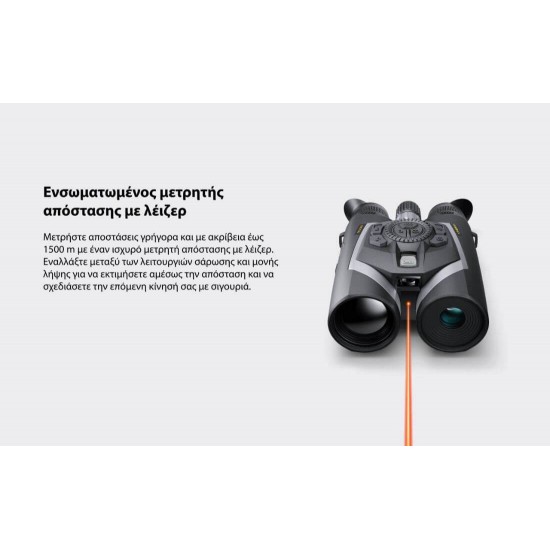

| Laser Rangefinder (LRF) | Maximum range 1500 m / Accuracy: ± 1 m / Wavelength: 905 nm |

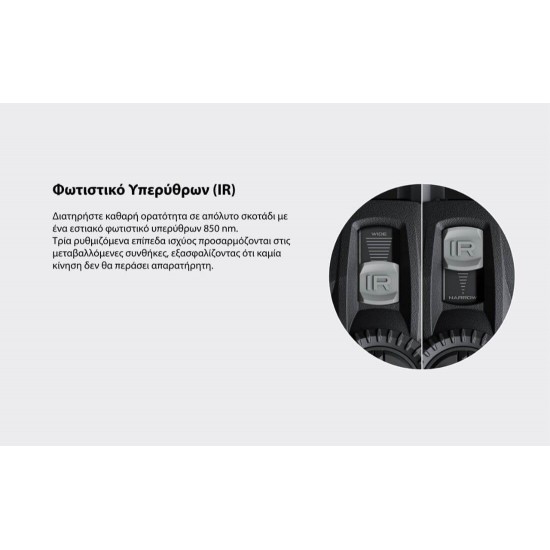

| Infrared Illuminator (IR) | LED 850 nm (Focusable, 3 power levels) |
| Display Type / Resolution | MicroLED (AMOLED) 1920x1080 pixels |
| Body Material / Waterproof Rating | Magnesium Alloy / IP67 (Fully Waterproof) |
| Memory / Recording | 64 GB built-in / Video & Photo recording with audio (.mp4 / .jpg) |
| Connectivity / Applications | Wi-Fi (2.4 / 5 GHz), USB-C / Stream Vision 2 & Ballistics support |
| Power Supply / Battery Life | 2x external APS5 batteries (4900 mAh) / 8 hours continuous operation |
| Dimensions / Weight | 207 x 132 x 72 mm / 1 kg (including batteries) |
Tactical Corner - High-End Thermal & Optical Tip
The Pulsar Symbion LRF DXT50 is a professional-grade tool that performs at its best when paired with the Stream Vision Ballistics application. By entering your equipment’s ballistic profile into the app, the True Horizontal Distance indication from the integrated Laser Rangefinder is automatically converted into a precise aiming point, eliminating the need for manual field calculations. Power Management Tip: The device features intelligent power management and Sleep Mode. During extended standby periods, use the 3-position tactile switch to place the display into sleep mode. This drastically reduces power consumption, while the device reactivates in less than one second with a simple press, ready for action.
The Tactical Corner team is here for any questions you may have and to fully support you both before and after your purchase. Call us at: +30 28210 87 733.
Specification Confirmation: The technical specifications (HD 1280x1024/12µm thermal sensor, 4K digital sensor, F50 objective lenses, 1500m LRF range, 850nm IR illuminator, image stabilization, magnesium body, APS5 battery compatibility) are based 100% on Pulsar’s official specifications for the Symbion LRF DXT50 (#77456) model.
