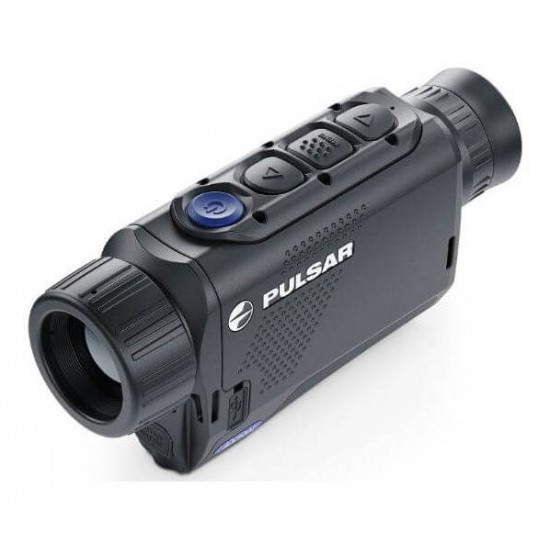

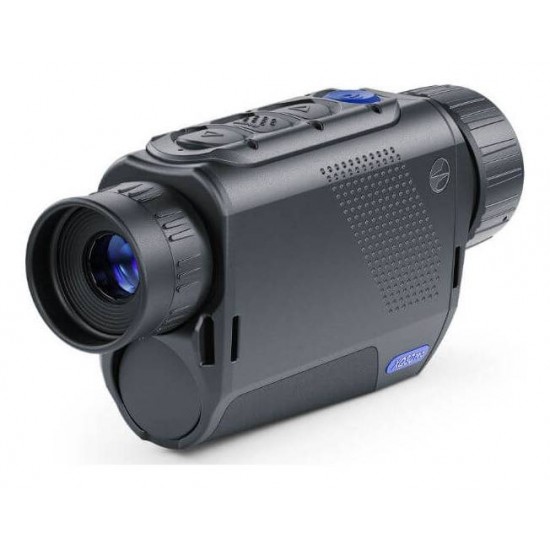

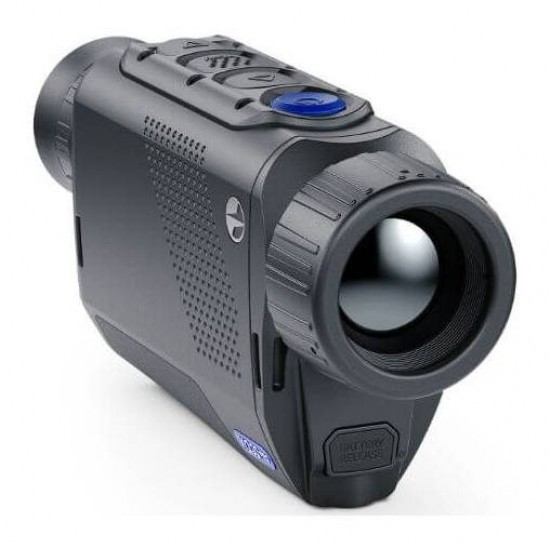

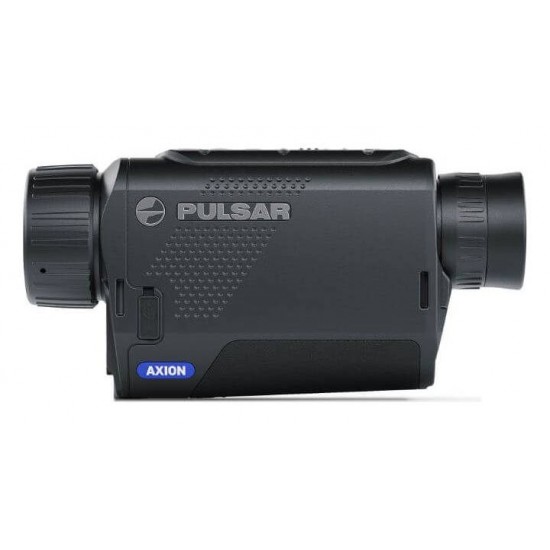

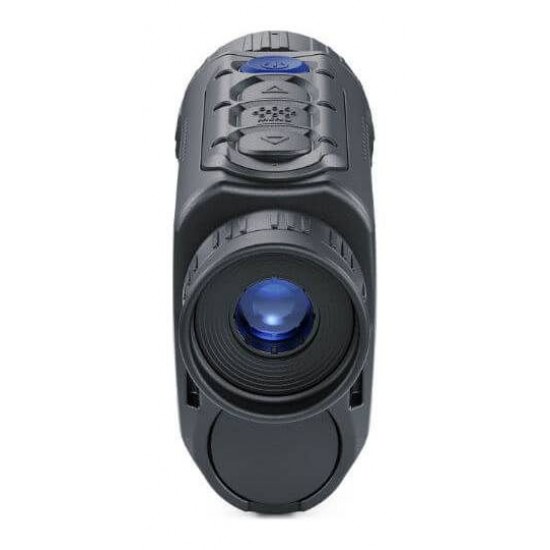

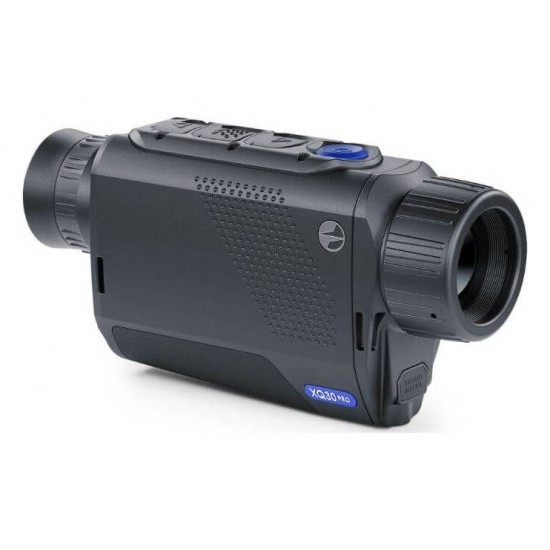

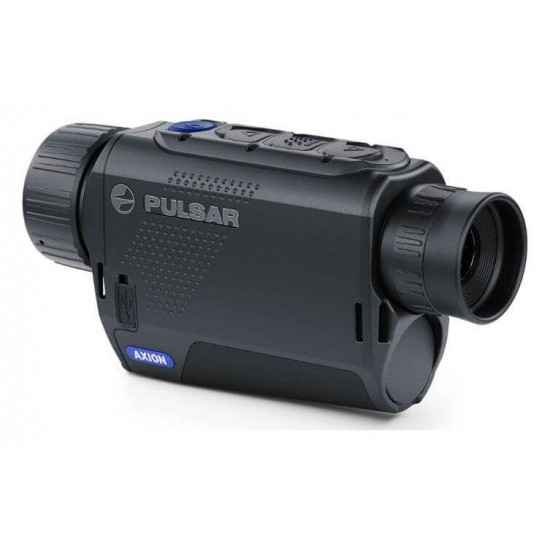

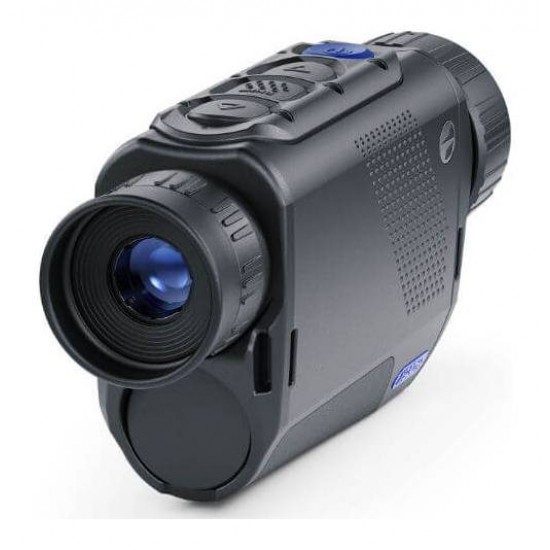

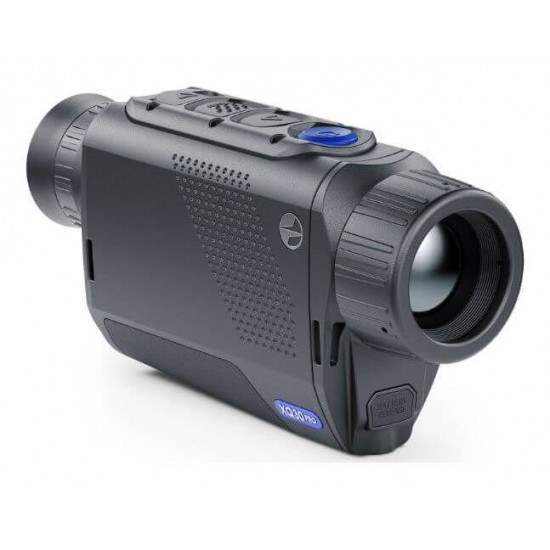

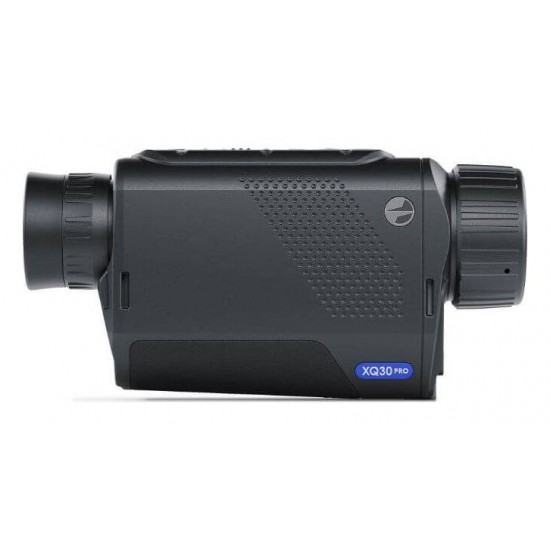

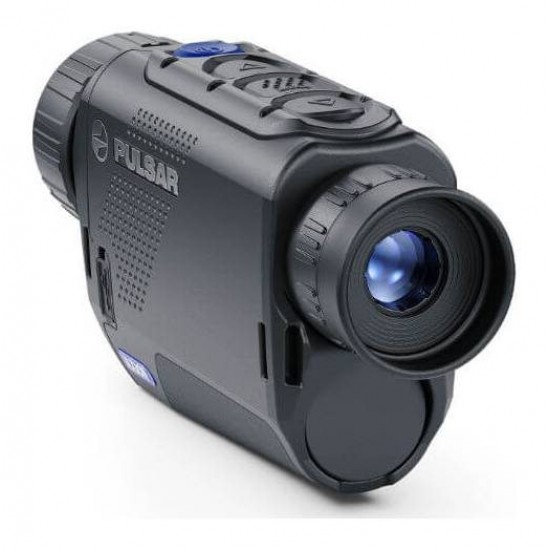

Pulsar Axion XQ30 Pro Thermal Imaging Monocular
Thermal Hunting & Observation Monocular – Pulsar Axion XQ30 Pro with 384×288 Sensor, NETD <25mK Sensitivity, AMOLED Display, and Built-In Wi-Fi & Video Recorder
The Pulsar Axion XQ30 Pro is the latest premium addition to the compact thermal imaging category, redefining the standards of night observation and thermal detection. Equipped with a professional-grade 384×288 pixel @ 17 µm sensor and an advanced NETD thermal sensitivity below 25 mK, the Axion XQ30 Pro delivers crystal-clear thermal imagery with exceptionally low noise levels. Even under the most challenging weather conditions, including heavy rain, dense fog, and high humidity, the device maintains outstanding contrast, revealing even the smallest thermal details of targets and their surroundings.

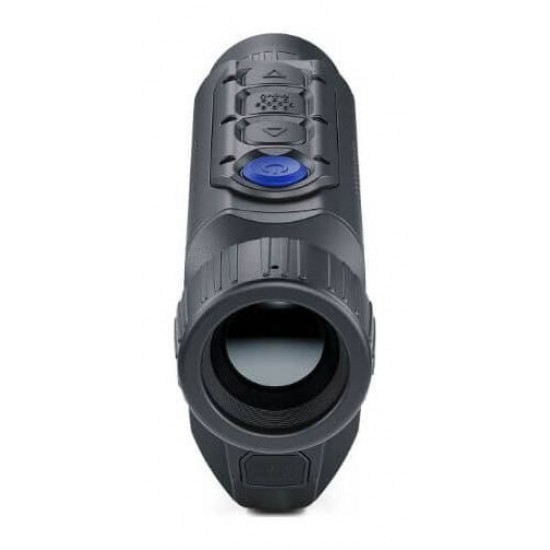

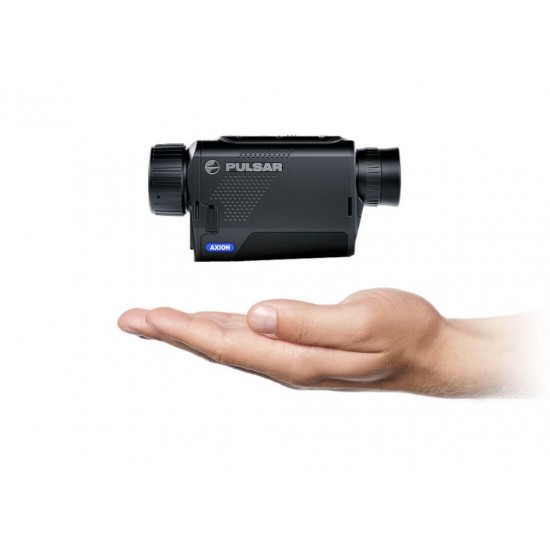

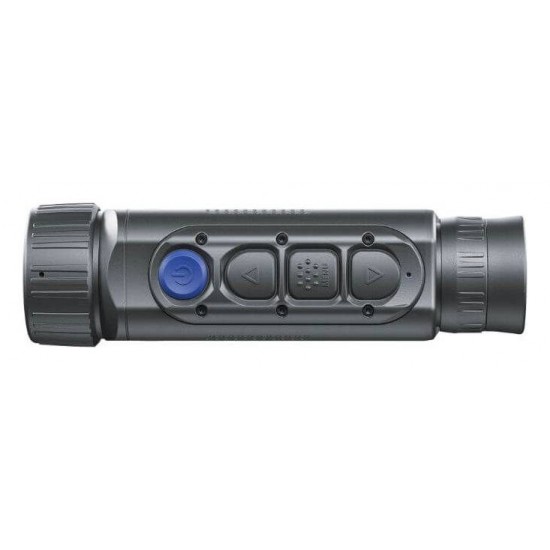

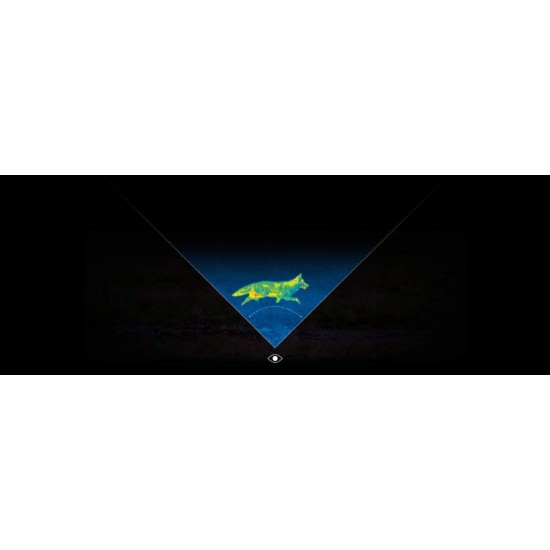

Designed for maximum field ergonomics, it features an exceptionally wide 13.3° field of view (23.3 meters at 100m), allowing fast and effortless scanning of large areas. Users can quickly detect heat sources at distances of up to 1,050 meters (for a standard 1.7m tall object). The high-contrast 640×400 AMOLED display ensures vibrant image reproduction, deep blacks, and instant response times, operating flawlessly even in extreme temperatures ranging from -25°C to +40°C. Its compact pocket-sized dimensions and fully symmetrical top-mounted button layout make the device equally comfortable for both right-handed and left-handed users.

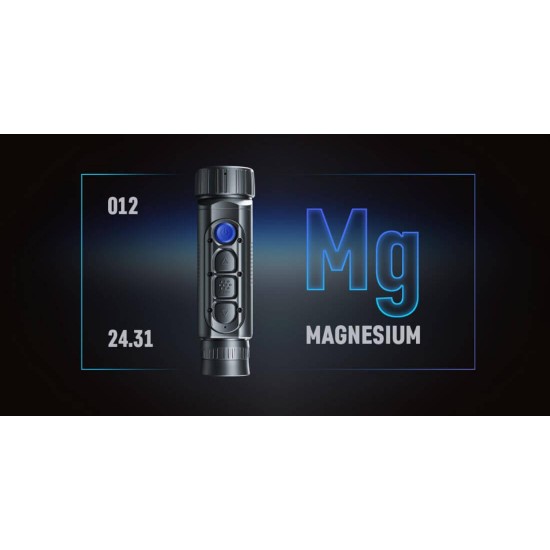

The durability of the Pulsar Axion XQ30 Pro meets professional field requirements. Its housing is constructed from a high-strength magnesium alloy, providing excellent protection against impacts, drops, and vibrations while keeping overall weight remarkably low. The metal chassis also acts as an efficient heat sink, dissipating heat from internal electronics to reduce image noise during extended operation. With an IPX7 waterproof rating, the device withstands heavy rain, snow, and even immersion in water up to 1 meter deep for 30 minutes. Additionally, the built-in 16GB memory allows users to record hours of video and thousands of images at the touch of a button.
Ideal Applications
- Advanced Hunting & Tracking: An invaluable tool for locating game hidden in dense vegetation, tall grass, or complete darkness. Three sensitivity enhancement levels and advanced image processing algorithms allow early detection even in foggy or humid conditions.
- Search & Rescue (SAR) Operations: Ideal for rescue teams and security personnel. The wide field of view enables rapid scanning of hillsides, forests, and open terrain for locating missing persons through their thermal signatures.
- Perimeter Security & Surveillance: Suitable for protecting critical infrastructure, large estates, and border areas. The 1,050-meter detection range provides valuable reaction time in the event of perimeter breaches.
- Outdoor Exploration & Wildlife Observation: Perfect for nature enthusiasts, biologists, and hikers who wish to observe nocturnal wildlife activity or navigate safely in darkness while recording their experiences.
Key Features & Benefits
- Advanced NETD <25mK Sensor: Detects extremely small temperature differences, ensuring exceptional image detail even when thermal contrast is minimal.
- Wide 13.3° Field of View: Simplifies searching and scanning by allowing users to monitor larger areas with fewer movements.
- Magnesium Alloy Housing: Outstanding durability against impacts, excellent heat dissipation, and lightweight portability.

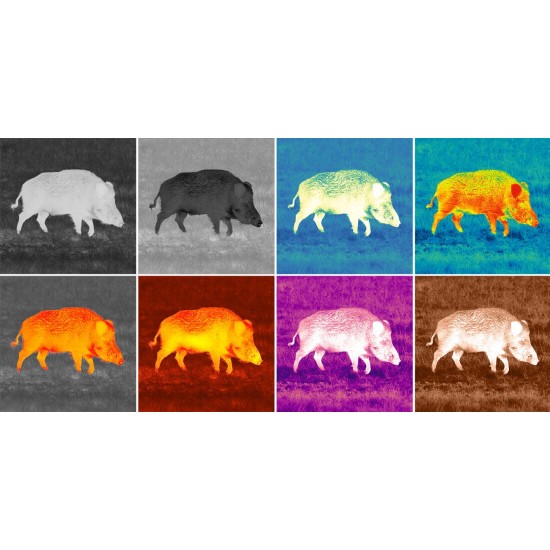

- 8 Color Palettes: Fully customizable viewing modes including White Hot, Black Hot, Red Hot, Rainbow, Ultramarine, Red Monochrome, Sepia, and Violet for different observation scenarios.
- Wi-Fi Connectivity & Stream Vision 2: Connects to iOS and Android devices for live streaming, remote control, wireless firmware updates, and cloud storage integration.
- Picture-in-Picture Function: Displays a digitally magnified image window in the upper portion of the display, allowing precise target observation without losing situational awareness.
- APS3 Quick-Change Battery System: Removable rechargeable Li-ion battery delivering up to 8 hours of operation and fast replacement in the field.
Technical Specifications
| MAIN FEATURES | |
|---|---|
| Brand / Manufacturer | PULSAR |
| Model | Axion XQ30 Pro |
| Product Code (SKU) | 9100080512 |
| Alternative Code | 77506 |
| EAN Code | 4779022926068 |
| Detection Range | 1,050 meters (for a 1.7m × 0.5m object) |
| SENSOR | |
| Sensor Type | Uncooled Microbolometer |
| Sensor Resolution | 384×288 pixels |
| Pixel Pitch | 17 µm |
| Thermal Sensitivity (NETD) | <25 mK |
| OPTICS & DISPLAY | |
| Objective Lens | F30 / 1.2 |
| Optical Magnification | 2× – 8× |
| Digital Zoom | 4× (Up to 8× Total Magnification) |
| Field of View (HxV) | 13.3° × 10° |
| Field of View at 100m | 23.3m × 17.5m |
| Display Type / Resolution | AMOLED / 640×400 pixels |
| RECORDING & MULTIMEDIA | |
| Photo / Video Resolution | 528×400 pixels |
| File Formats | .mp4 (Video) / .jpg (Photo) |
| Internal Memory | 16 GB |
| Mobile App | Stream Vision 2 (iOS & Android) with Cloud Storage |
| WIRELESS CONNECTIVITY (Wi-Fi) | |
| Protocol / Frequency | IEEE 802.11 b/g/n/ac (WPA) / 2.4 GHz & 5 GHz |
| ENVIRONMENTAL & POWER | |
| Protection Rating | IPX7 (Fully Waterproof) |
| Operating Temperature | -25°C to +40°C |
| Battery Type | APS3 Li-ion Battery Pack (Removable) |
| Battery Runtime | Up to 8 Hours Continuous Operation |
| External Power Supply | 5V via USB Type-C (Power Delivery) |
| Dimensions / Weight | 144mm × 41mm × 69mm / Ultra-Lightweight Design |
Package Contents
- Axion XQ30 Pro Thermal Monocular
- APS3 Rechargeable Battery Pack
- Battery Charger / Power Adapter
- USB Type-C Cable with USB Type-A Adapter
- Premium Carrying Case
- Hand Strap for Secure Handling
- Quick User Manual
- Lens Cleaning Cloth
- Official Warranty Card
*Note: Product colors may vary slightly due to lighting conditions during photography.
Tactical Corner Tip: Calibration Procedures, APS3 Battery Management & Sensitivity Adjustment
Proper Calibration Procedure: The Axion XQ30 Pro microbolometer sensor requires periodic calibration to eliminate residual image artifacts and correct image non-uniformities. The device offers three calibration modes: Automatic (A), Semi-Automatic (H), and Manual (M). Critical Tip: In Manual Mode (M), preferred by experienced users and professional field operators because it is completely silent, you must close the protective lens cap before initiating calibration. If calibration is performed with the lens uncovered, image artifacts may occur and the process will need to be repeated with the lens cap closed.
APS3 Battery Management in Cold Weather: Although the AMOLED display remains highly resistant to freezing temperatures, lithium-ion batteries naturally discharge faster below zero. Performance Tip: When operating in cold environments down to -25°C, keep spare APS3 batteries in an inside clothing pocket to benefit from body heat. Install the battery only when observation is about to begin. For extended observation sessions, an external power bank can be connected through the waterproof USB Type-C port while safely stored inside a backpack or jacket pocket.

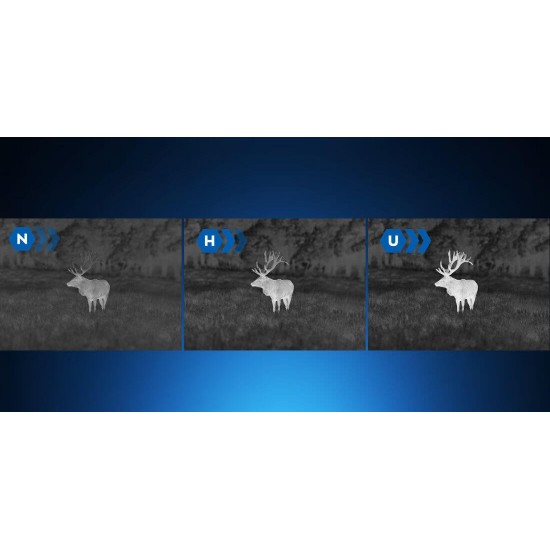

Using the Three Sensitivity Enhancement Levels: The three sensitivity settings are not simple brightness controls but advanced image-processing algorithms that influence how the NETD <25mK sensor separates targets from the background. In clear and dry weather, use the Normal setting. When humidity increases or light fog is present, switch to High. During storms, dense fog, or situations with minimal thermal contrast between targets and the environment, activate the Ultra setting together with the Rainbow palette. This combination highlights subtle thermal differences, making it easier to distinguish targets when lesser devices may show only a flat gray image.
Need assistance? Our specialized support team is available to help: +30 28210 87 733.
Specification Verification: Technical specifications (Pulsar brand, Axion XQ30 Pro model, SKU 9100080512, alternative code 77506, EAN 4779022926068, 384×288 @ 17µm sensor with NETD <25mK, F30/1.2 objective lens, 13.3° field of view, 640×400 AMOLED display, 16GB internal memory, dual-band 2.4/5GHz Wi-Fi, IPX7 waterproof rating, magnesium alloy housing, APS3 battery with up to 8 hours runtime, and 1,050-meter detection range) are based on the manufacturer's official specifications.
