Description

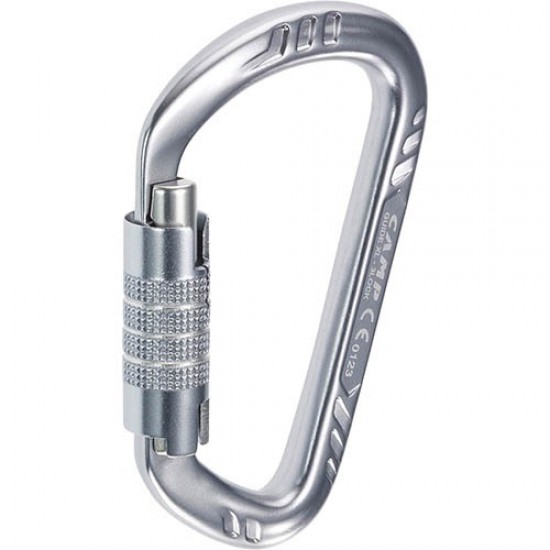

High-Strength Safety Carabiner – Camp Guide XL 3Lock
Camp Guide XL Oversized Aluminum Carabiner with 3-Action Auto-Locking System (3Lock), EN 362 / EN 12275 Certified, 28 kN Strength & Keylock Nose
The Camp Guide XL 3Lock (#136503) is an oversized safety carabiner designed to provide maximum security in Rock Climbing, Alpinism, as well as rescue operations and professional work-at-height applications. Thanks to its specialized ergonomic shape, it achieves an outstanding strength-to-weight ratio, while its large size greatly facilitates handling thick ropes, webbing, and complex rigging systems.
It features the advanced 3Lock automatic locking system (triple-action), which requires three specific actions to open (slide, twist, and pull), virtually eliminating the possibility of accidental opening caused by rope friction. Despite its high level of security, it remains exceptionally easy to operate with one hand. In addition, the Keylock nose design ensures the carabiner will not snag during clipping, while its high-strength aluminum alloy construction guarantees stability under loads up to 28kN.
Key Features
- 3Lock Automatic Locking: Triple-action mechanism (slide, twist, pull) for maximum safety in the field.
- Oversized (XL) Design: Larger body offering a generous 24mm gate opening for comfortable rope handling.
- One-Hand Operation: Smart geometry allows quick opening and secure locking with a single hand movement.
- Keylock System: Snag-free nose design for smooth clipping without catching on hangers or slings.
- Dual Certification: Fully approved for both sport use (EN 12275) and professional fall protection applications (EN 362).
Technical Specifications
| Brand / Manufacturer | CAMP (Italy) |
| Model / SKU | GUIDE XL 3LOCK / #136503 |
| Material | High-strength aluminum alloy |
| Locking Type | Automatic triple-action (3Lock) |
| Major Axis Strength | 28 kN |
| Minor Axis Strength | 9 kN |
| Open Gate Strength | 8 kN |
| Gate Opening | 24 mm |
| Dimensions (Length x Width) | 117 mm x 75 mm |
| Weight | 86 g (3.0 oz) |
| Certifications / Standards | CE EN 12275 (Type B) & CE EN 362 (Type B) |
| Recommended Use | Rock Climbing, Alpinism, Belay Biner, Rescue, Work at Height |
Tactical Corner Tip for the Camp Guide XL Carabiner
The 3Lock system from Camp is highly recommended if you intend to use an auto-locking carabiner as your primary belay biner. Thanks to its XL size, it provides ample internal space, allowing your belay device or knot to operate freely without binding.
Important Reminder: For safety reasons and in accordance with applicable regulations, returns or exchanges are not accepted for life-support/load-bearing equipment. This ensures that every product you receive has a zero-use and zero-load history.
Need clarification regarding compatibility with your belay device or applicable safety standards? Our team is available to assist you: +30 28210 87 733.
Specification Verification: Technical specifications (weight 86g, strength ratings 28kN/9kN/8kN, gate opening 24mm, dimensions 117x75mm, aluminum alloy construction, 3Lock locking system, and EN 12275 / EN 362 certifications) are based 100% on CAMP's official factory specifications for the Guide XL 3Lock model.
